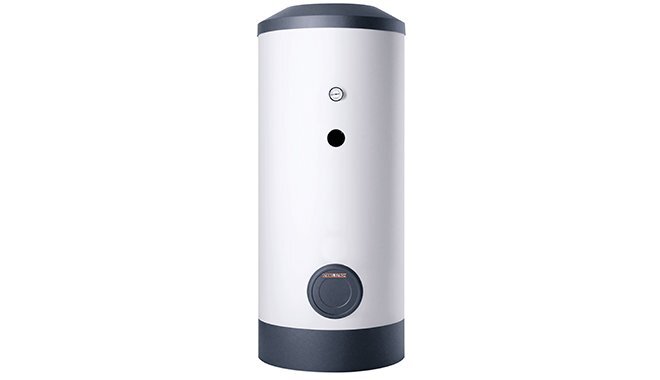

SBB 302-501 WP SOL DHW Cylinders

  • Provides domestic hot water solution in conjunction with a hydronic heat pump
  • 290 – 495 L hot water capacity
  • Made in Germany
  • Smart & modern casing
  • Highly effective insulation for low heat losses
  • Solar thermal systems compatible (SOL models)
Ask Quick Question

Product Overview

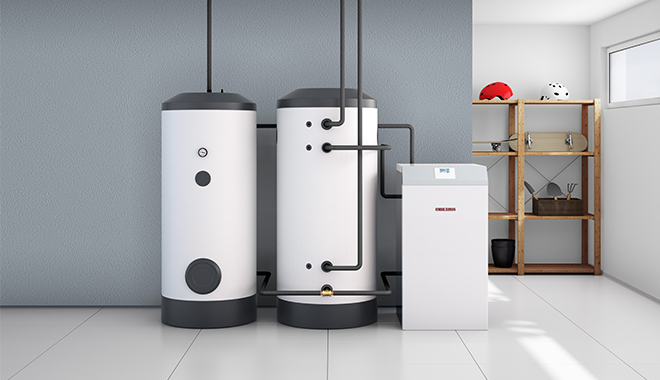

The SBB range of freestanding cylinders a the ideal solution for domestic hot water heating in conjunction with a heat pump for a family home. The cylinders are designed with smooth, indirect coils, which are excellent at transferring heat efficiently and an enamel coating over the inner casing to resist scale deposits. With the SOL versions, it is also possible to integrate a solar thermal system.

Product Details

The SBB range of freestanding cylinders a the ideal solution for domestic hot water heating in conjunction with a heat pump for a home. The cylinders are designed with smooth, indirect coils, which are excellent at transferring heat efficiently and an enamel coating over the inner casing to resist scale deposits. With the SOL versions, it is also possible to integrate a solar thermal system.

Technical Data

Model number SBB 302 WP SOL SBB 401 WP SOL SBB 501 WP SOL
Rated capacity 290 L 395 L 495 L
Height 1710 mm 1880 mm 1988 mm
Diameter 700 mm 750 mm 810 mm
Standby energy consumption/24 h at 65 °C 2.1 kWh 2.4 kWh 2.4 kWh
Indirect coil surface area
top + lower
4.8 m2 4.0 m2 + 1.4 m2 5.0 m2 + 1.4 m2
Flanged aperture 210 mm 210 mm 210 mm
PTR valve 700 kPa 700 kPa 700 kPa
Weight 184 kg 219 kg 260 kg
Solar Thermal Compatible No Yes – max. 8 m2 Yes – max. 10 m2

Downloads

File Category Type Download
SBB 302-501 WP SOL DHW Cylinder Data SheetData SheetPDF
578.81 kB
SBB 302-501 Operation & Installation Guide + WarrantyOperation, Installation & WarrantyPDF
1.79 MB
SBB 302-501 Exploded DiagramExploded DiagramPNG
55.00 kB
