DHCE 8/60

  • Delivers up to 60° Celsius hot water
  • Electronically controlled
  • Three selectable temperature outputs for greater convenience
  • Space saving compact design
Ask Quick Question

Product Overview

This water heater is for low-flow applications only.
Please contact us with any questions relating to the usage of this water heater.

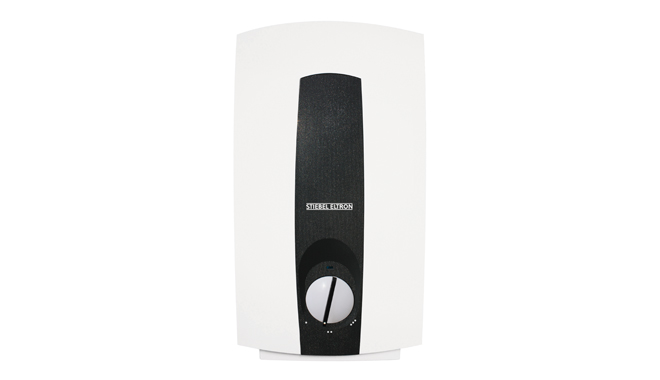

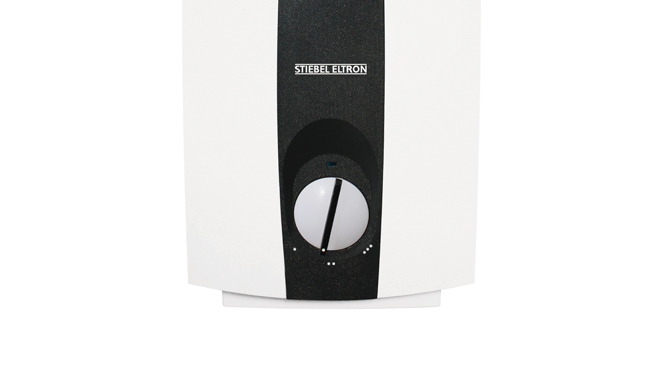

Electronically controlled DHCE 8/60 delivers hot water instantly up to 60°C.

The STIEBEL ELTRON DHCE single-phase instantaneous water heater is electronically controlled and has been designed for low-flow installations. Compact in size, the DHCE can be installed in areas where space is premium.

Available at:
Or your local plumbing supply store.

Product Details

High quality design

  • Electronically controlled
  • Three selectable temperature outputs for greater convenience
  • Tubular heating element
  • WaterMark approved, Lic. No. WMKA21273, AS3498

Installation flexibility

  • Delivers up to 60 degree Celsius hot water
  • No safe tray or drainage required (check local regulations)
  • Space saving compact design


The DHCE compact water heater is electronically controlled which helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.

The compact design of the DHCE is ideal for close to the point of use installation and also helps save water and energy by reducing the lag time for hot water to arrive at the outlet.

Available in the following electrical size:

  • DHCE 8/60 - 9.5kW, 40 Amps, single phase 240V


  • 5 Year full parts and labour domestic warranty*

*Conditions apply - refer warranty policy for full details.

Technical Data

Model number DHCE 8/60
Rated output (240V) 9.5kW
Rated current (240V) 40Amp
Phases 1/N/PE/AC 220..240V
Electrical Installation As per AS/NZS3000
Installation requirements AS/NZS3500.4.2 & local requirements
Switch on flow rate (minimum flow rate required to switch on the water heater) 1.5L/min
Permissible operating pressure 1000kPa
Temperature adjustment 40°C 50°C 60°C
IP Rating IP25
Height 360mm
Width 200mm
Depth 110mm
Weight (filled with water) 2.45kg
Colour white
Nominal capacity 0.45L
Approvals WaterMark Lic No. WMKA21273, AS3498
For one/several draw off points Yes/Yes
Heating system Tubular
Electronic flow rate control No
Electronic air detection system No
Accepts pre-heated water (solar) No
Programmable temperature No

Temperature Rise (240 V) DHCE 8/60
4 L/min +33 °C
5 L/min +27 °C
6 L/min +22 °C
7 L/min +19 °C
9 L/min +15 °C

Calculating Output Water Temperature
Add the above temperature rise values to your incoming cold water temperature to calculate output at a desired flow rate.

Seasonal Average Cold Water Temperatures
Melbourne: 15 °C
Sydney/Brisbane/Perth/Adelaide: 18 °C
Canberra/Hobart: 14 °C
Townsville/Darwin: 25 °C


File Category Type Download
DHCE 8/60 Data SheetData SheetPDF
741.80 kB
DHCE 8/60 Operation and InstallationOperation and Installation GuidePDF
2.78 MB
DHCE 8/60 WarrantyWarrantyPDF
110.37 kB
Revit file of STIEBEL ELTRON's DHCETechnical DrawingRFA
396.00 kB
STIEBEL ELTRON Tech Line Drawing DHCE 60Technical DrawingJPG
1.48 MB
STIEBEL ELTRON Exploded Diagram DHCEExploded DiagramPDF
294.42 kB
Model & Serial Number LocationSerial Number LocationPDF
3.55 MB


1. Does the DHCE 8/60 operate on a standard 10 Amp powerpoint with a three-pin plug?

No, the DHCE single phase instantaneous water heaters require a dedicated hard wired circuit as they draw more than 10 Amps.

2. Where can I install the DHCE 8/60?

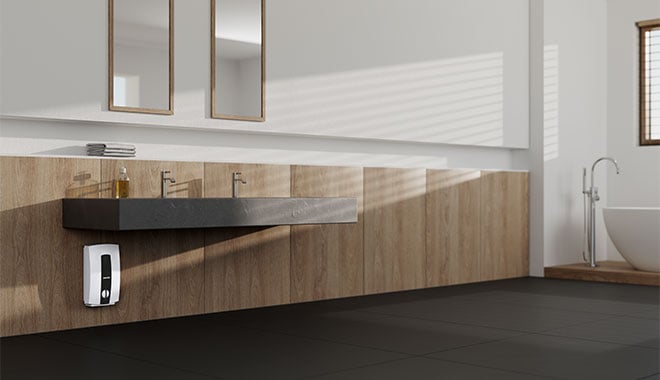

The DHCE 8/60 instant hot water systems can be installed almost anywhere due to their compact design. The water heater does not require ventilation, relief drain or safe trays so it can be installed in a cupboard, in the roof space, below the sink, in a service cavity, in a Euro laundry just to name a few options.

3. Is the DHCE 8/60 suitable to use with low flow tapware?

Yes, the DHCE has a switch on flow rate of only 1.5L/min making them ideal water heaters to use with low flow tapware.

4. Can I replace my electric storage water heater with a DHCE 8/60?

The DHCE 8/60 instant hot water system will not deliver the same temperature hot water at the same flow rates as an electric storage water heater. Please contact our customer service team on 1800 153 351 to determine which instantaneous water heater is right for your application.

5. How far can the DHCE 8/60 be installed from the hot water outlets?

The DHCE 8/60 is designed to be installed as close as practical to the most used hot water outlet. Installing closer to the point of use can help to save water and energy by delivering hot water quickly to the outlet. The STIEBEL ELTRON single phase electric instantaneous water heaters are designed to service multiple outlets located several metres away from the system.
