WPL-A 07

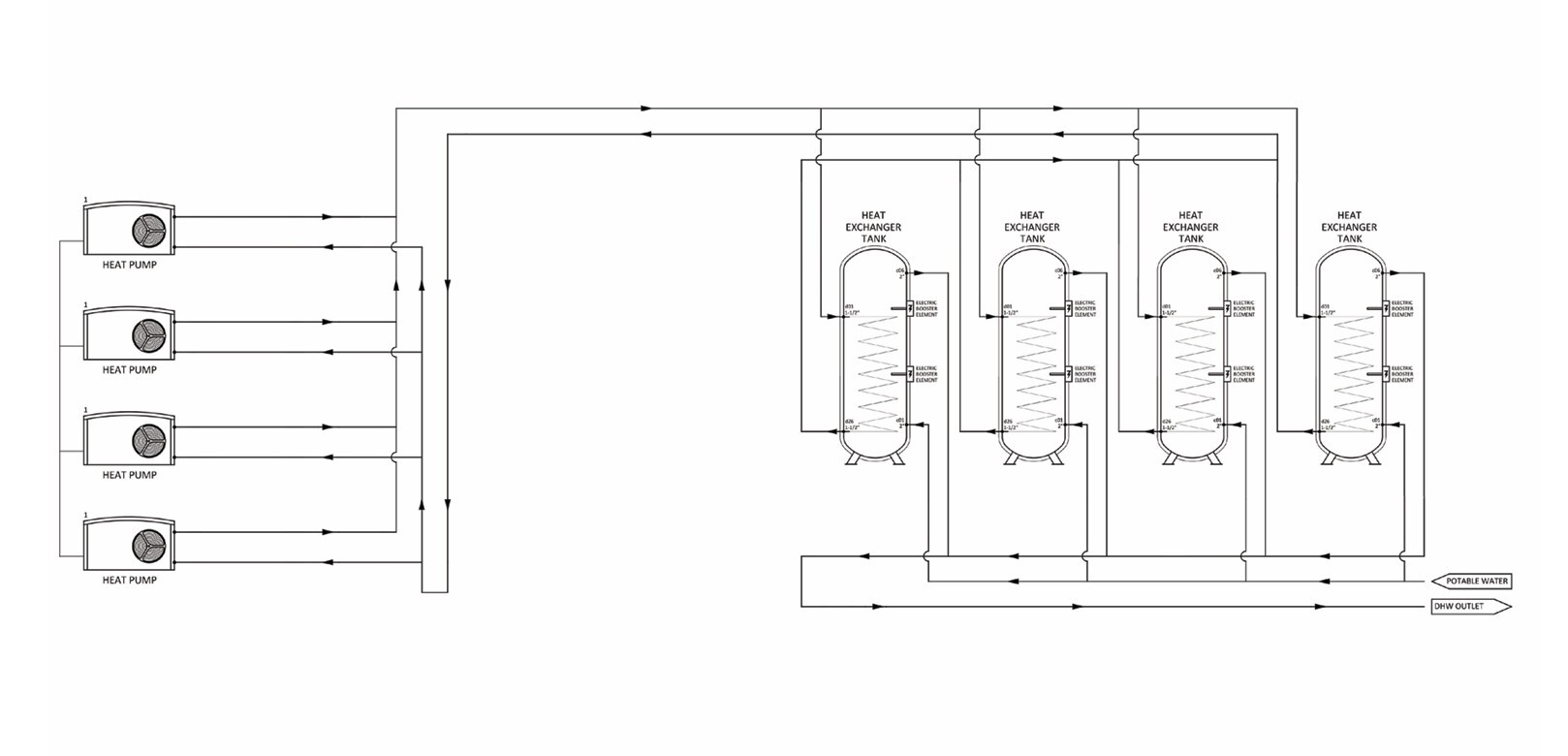

- CMT - Commercial Modular Trend configurations
- Medium to large commercial hot water offerings
- Inverter technology provides adjusted heating output
- R454C refrigerant
- High flow temperatures of up to 75 °C enable high DHW temperatures and mixed water volumes
- Low operating costs through high efficiency all year round
- Smart Grid ready for connection to solar PV and energy management systems
- Backed by Stiebel Eltron warranty and after-sales support
Ask Quick Question

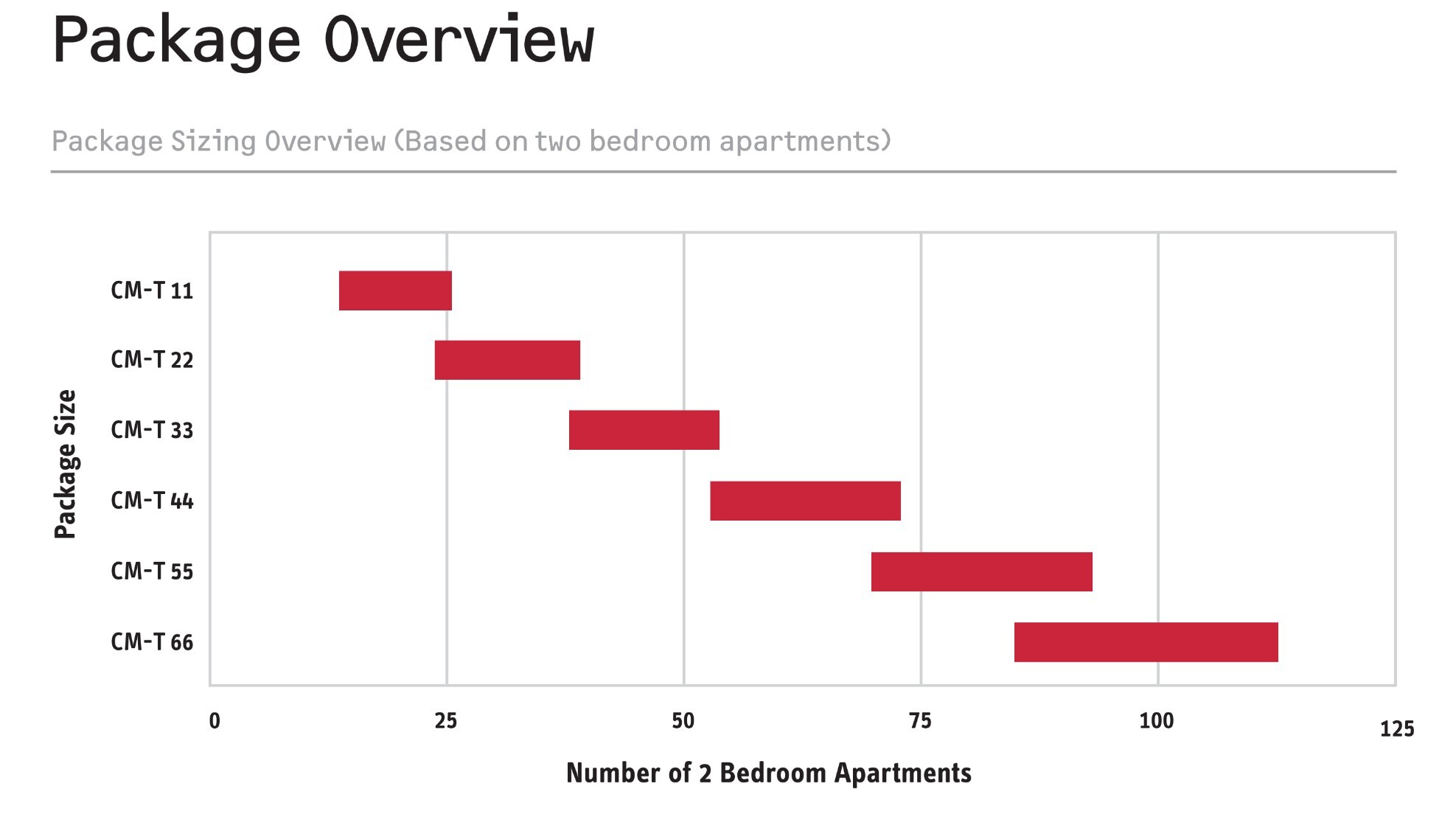

Product Overview

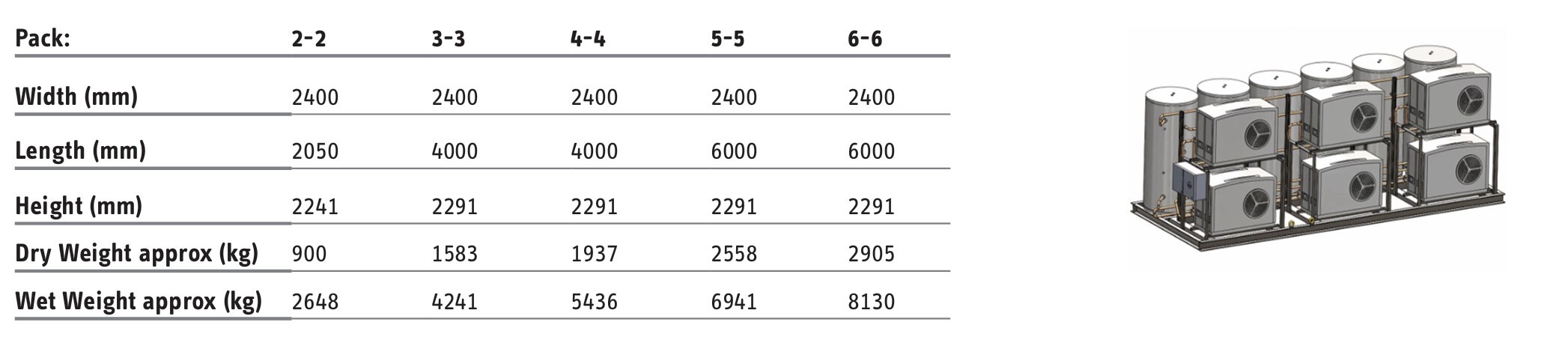

Prefabricated Skid Overview
In addition to free installation layout using our modular components, STIEBEL ELTRON offers a prefabricated skid system variant designed to accelerate deployment, ensure build quality, and maintain flexibility to meet the specific needs of your project. The set up will reduce on-site time, costs, and risks, while delivering consistency and high-quality execution.

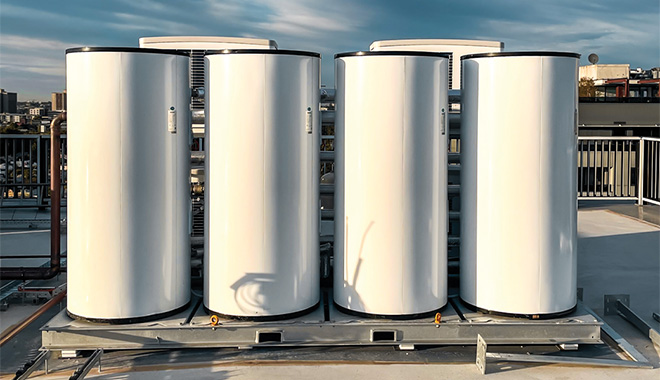

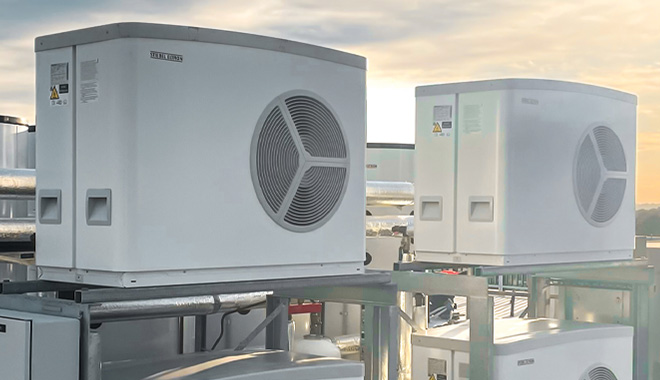

Prefabricated Skid
Save time, provide a fast and reliable install, and avoid ambient risk factors with a product that has been pretested in the factory.

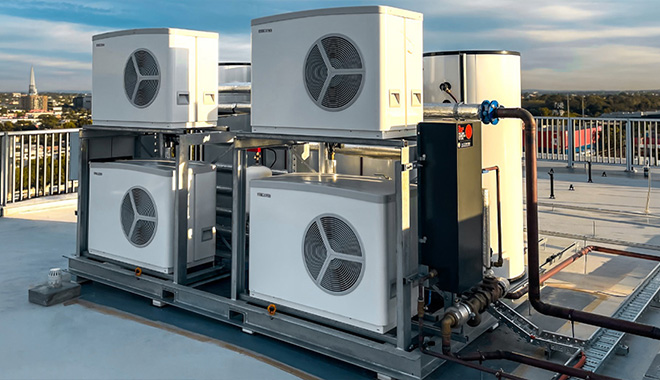

Full Skid
This turnkey solution includes a complete heat pump and tank assembly mounted on a structural steel skid. All hydraulic and potable water connections, electrical wiring, insulation, and commissioning checks are completed at the factory. The system is pre-tested, pressure tested and supplied with insulation and a crane lifting certificate. This package is ideal for projects requiring fast, hassle-free installation with minimal site coordination or trades.
The hot water plant shall be supplied as a full skid-mounted system. All hydraulic and potable water pipework, insulation, and electrical connections shall be factory-installed, pressure tested, and pre-commissioned. The system shall include all necessary thermal insulation, crane lifting points, and certification for transport and rooftop installation. The skid shall be delivered as a plug-and-play solution requiring only connection of mains power, cold water inlet, hot water outlet, and ring main return.
Technical Data
| Name | Unit | QTY | Tanks | Heating Cylinder Volume | Min. Spatial Requirement (sqm) | Dry Weight (KG) | Wet Weight (KG) | Connected Load (A) | Peak Draw (kW) | Electrical Box Sub Main |
| CM-T-11 | WPL-A 07 | 1 | 1 | 829 | 5.78 | 506 | 1674 | 50 | 11.7 | 20/PH 415V |
| CM-T-22 | WPL-A 07 | 2 | 2 | 1658 | 9.02 | 937 | 2948 | 90 | 23.4 | 32/PH 415V |
| CM-T-33 | WPL-A 07 | 3 | 3 | 2487 | 16.22 | 1368 | 4222 | 130 | 35.1 | 40/PH 415V |
| CM-T-44 | WPL-A 07 | 4 | 4 | 3316 | 14.92 | 1799 | 5496 | 170 | 46.8 | 63/PH 415V |
| CM-T-55 | WPL-A 07 | 5 | 5 | 4145 | 19.51 | 2239 | 6770 | 210 | 58.5 | 80/PH 415V |
| CM-T-66 | WPL-A 07 | 6 | 6 | 4974 | 23.30 | 2661 | 8044 | 250 | 70.2 | 100/PH 415V |
