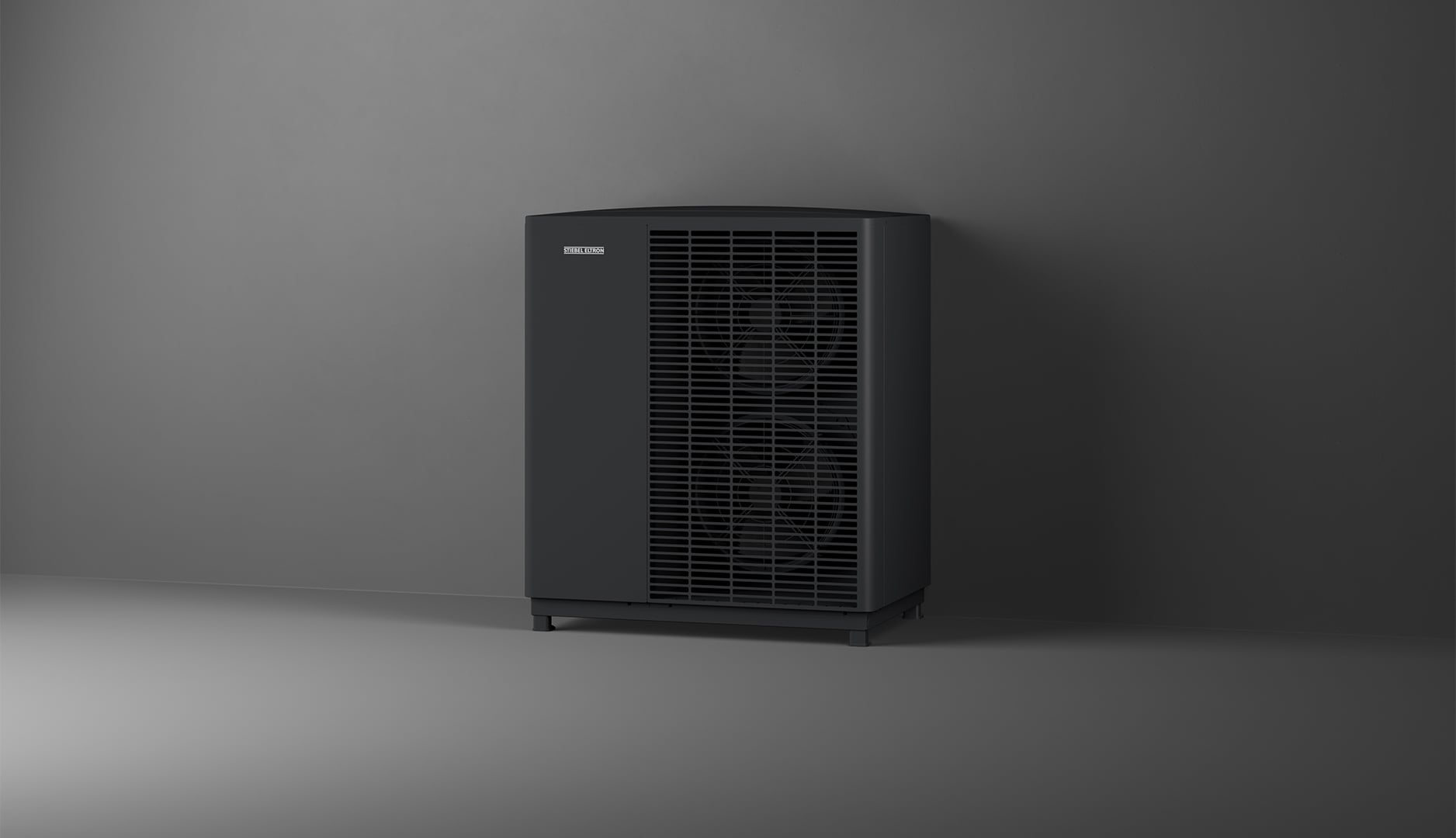

WPL-A 17.2
- CMT - Commercial Modular Trend configurations
- Medium to large commercial hot water offerings
- Inverter technology provides adjusted heating output
- R290 refrigerant technology for ultra low GWP
- High flow temperatures of up to 75 °C enable high DHW temperatures and mixed water volumes
- Low operating costs through high efficiency all year round
- Smart Grid ready for connection to solar PV and energy management systems
- Backed by Stiebel Eltron warranty and after-sales support
Ask Quick Question
Product Overview
In addition to free installation layout using our modular components, STIEBEL ELTRON offers a prefabricated skid system variant designed to accelerate deployment, ensure build quality, and maintain flexibility to meet the specific needs of your project. The set-up will reduce on-site time, costs, and risks, while delivering consistency and high-quality execution.
Prefabricated Skid
Save time, enable a fast and reliable install, and avoid ambient risk factors with a product pretested in the factory.

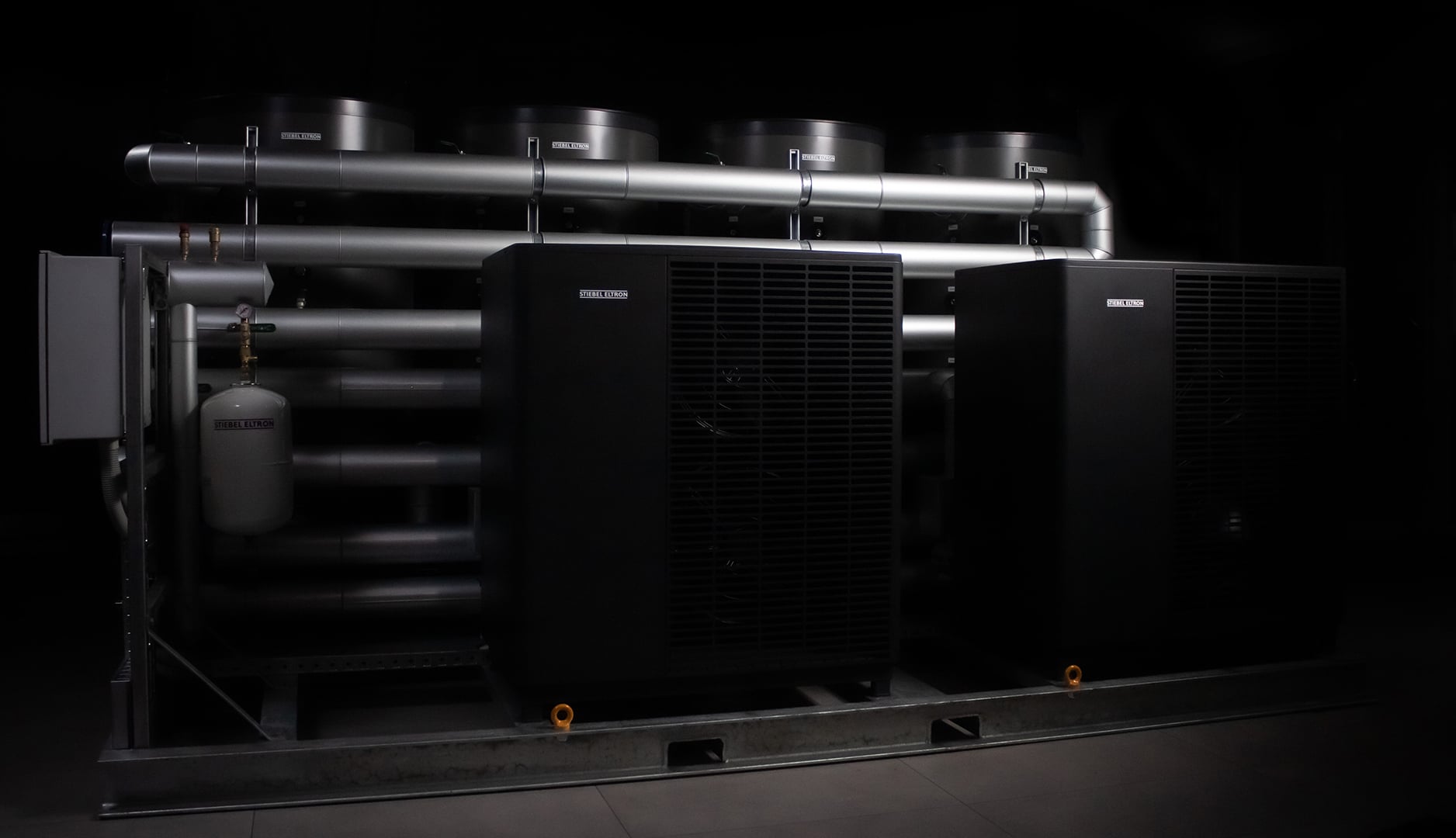

Full Skid

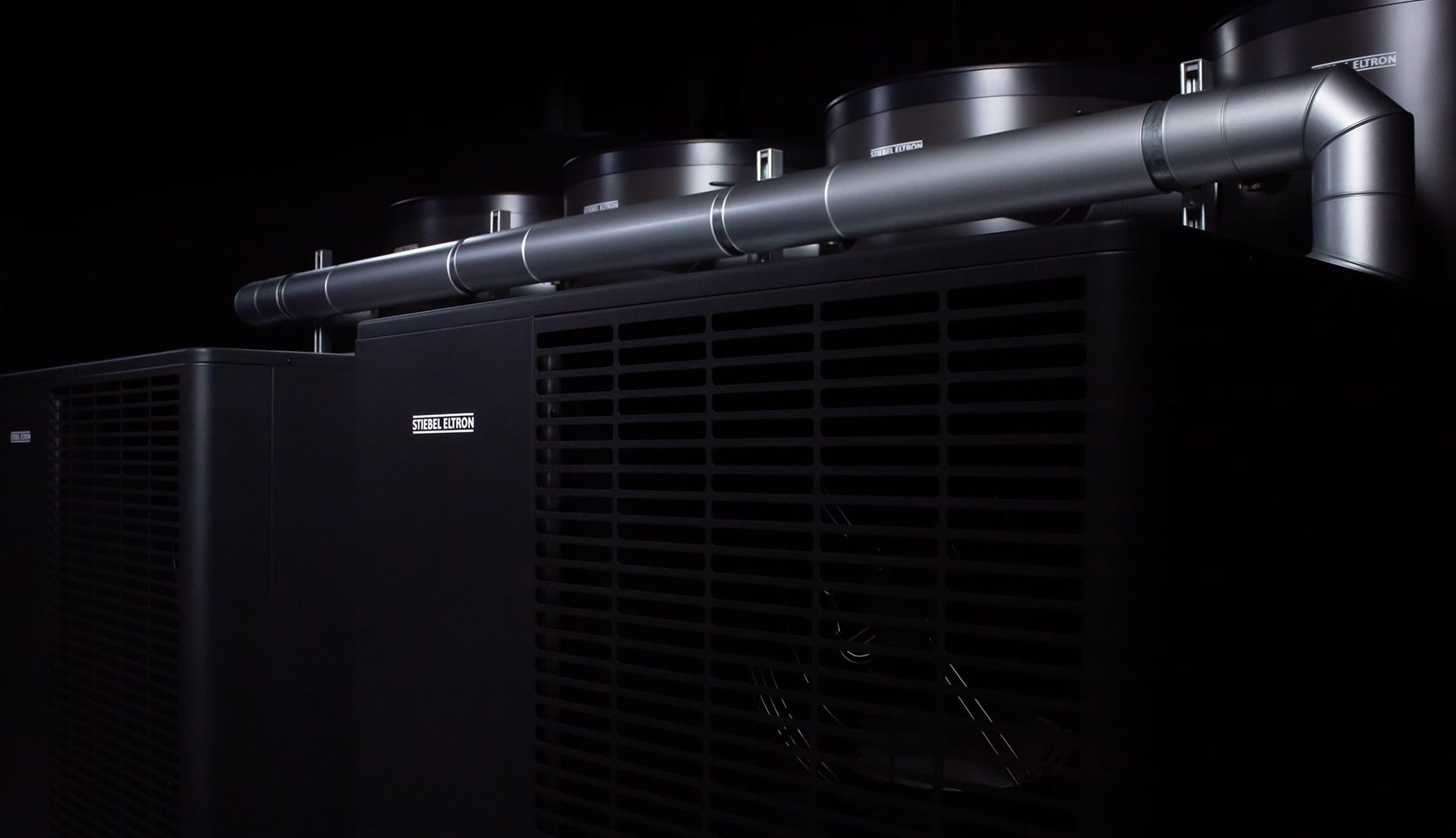

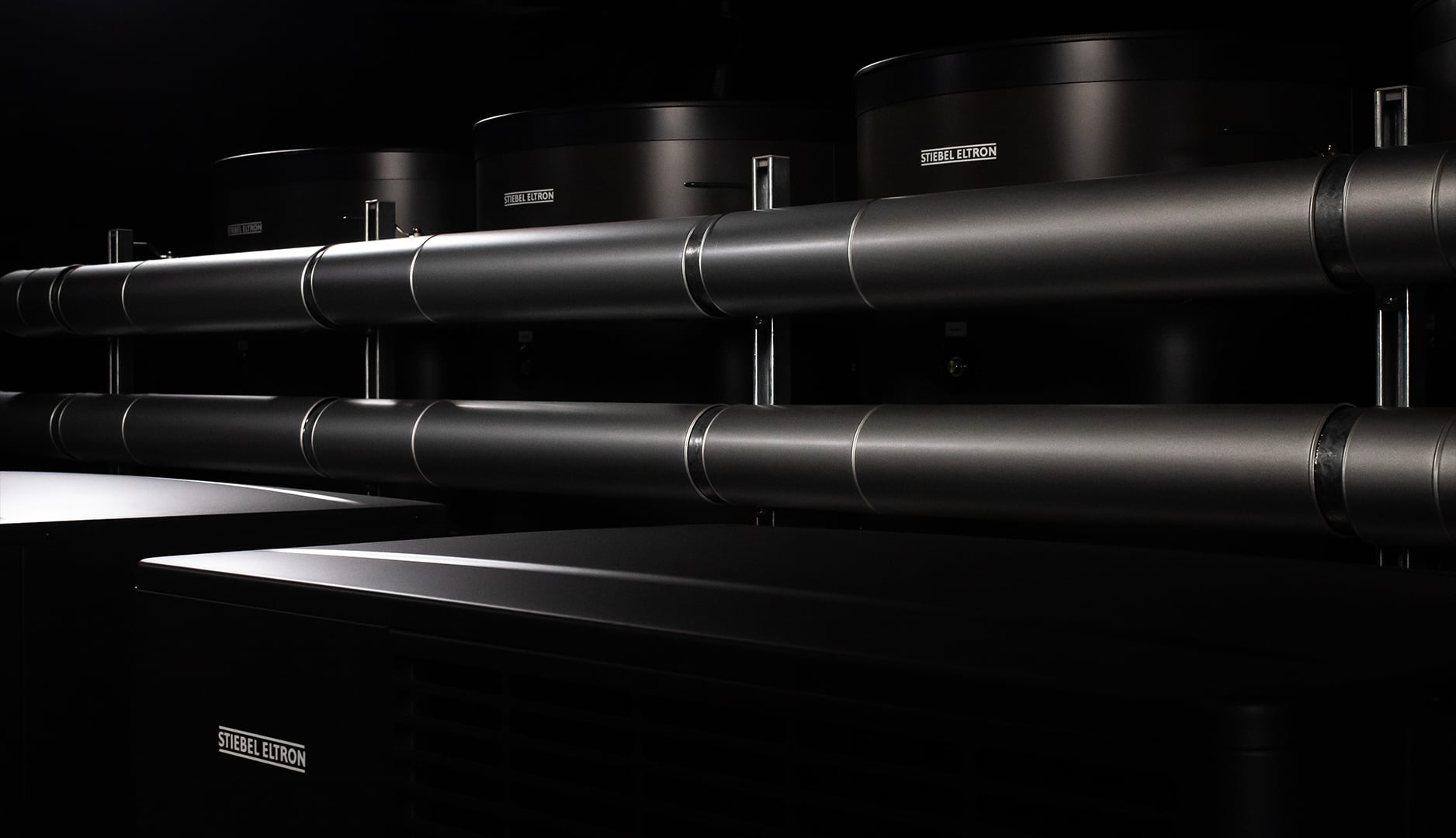

This turnkey solution includes a complete heat pump and tank assembly mounted on a structural steel skid. All hydraulic and potable water connections, electrical wiring, insulation, and commissioning checks are completed at the factory. The system is pre-tested, pressure-tested, and supplied with insulation and a crane lifting certificate. This package is ideal for projects requiring fast, hassle-free installation with minimal site coordination or trades.
Product Details
The hot water plant shall be supplied as a full skid-mounted system. All hydraulic and potable water pipework, insulation, and electrical connections shall be factory-installed, pressure-tested, and pre-commissioned. The system shall include all necessary thermal insulation, crane lifting points, and certification for transport and rooftop installation. The skid shall be delivered as a plug-and-play solution requiring only connection of mains power, cold water inlet, hot water outlet, and ring main return.
For planning or sales enquiries, contact us by asking a question below.
Technical Data
| Name | Unit | QTY | Tanks | Heating Cylinder Volume | Min. Spatial Requirement (sqm) | Dry Weight (KG) | Wet Weight (KG) | Connected Load (A) | Peak Draw (kW) |
Voltage/ |
Min Circuit Size per Phase (A) |
| CMT-12-17-800 | WPL-A 17.2 | 1 | 2 | 1658 | 12 | 588 | 2246 | 72 | 16.2 | 400-415V/3Ph+N50Hz | 35 |
| CMT-24-17-800 | WPL-A 17.2 | 2 | 3 | 2487 | 17.5 | 949 | 3436 | 143 | 32.4 | 400-415V/3Ph+N50Hz | 70 |
| CMT-36-17-800 | WPL-A 17.2 | 3 | 6 | 4974 | 31.5 | 1614 | 6588 | 215 | 48.6 | 400-415V/3Ph+N50Hz | 85 |
