Commercial Integrated

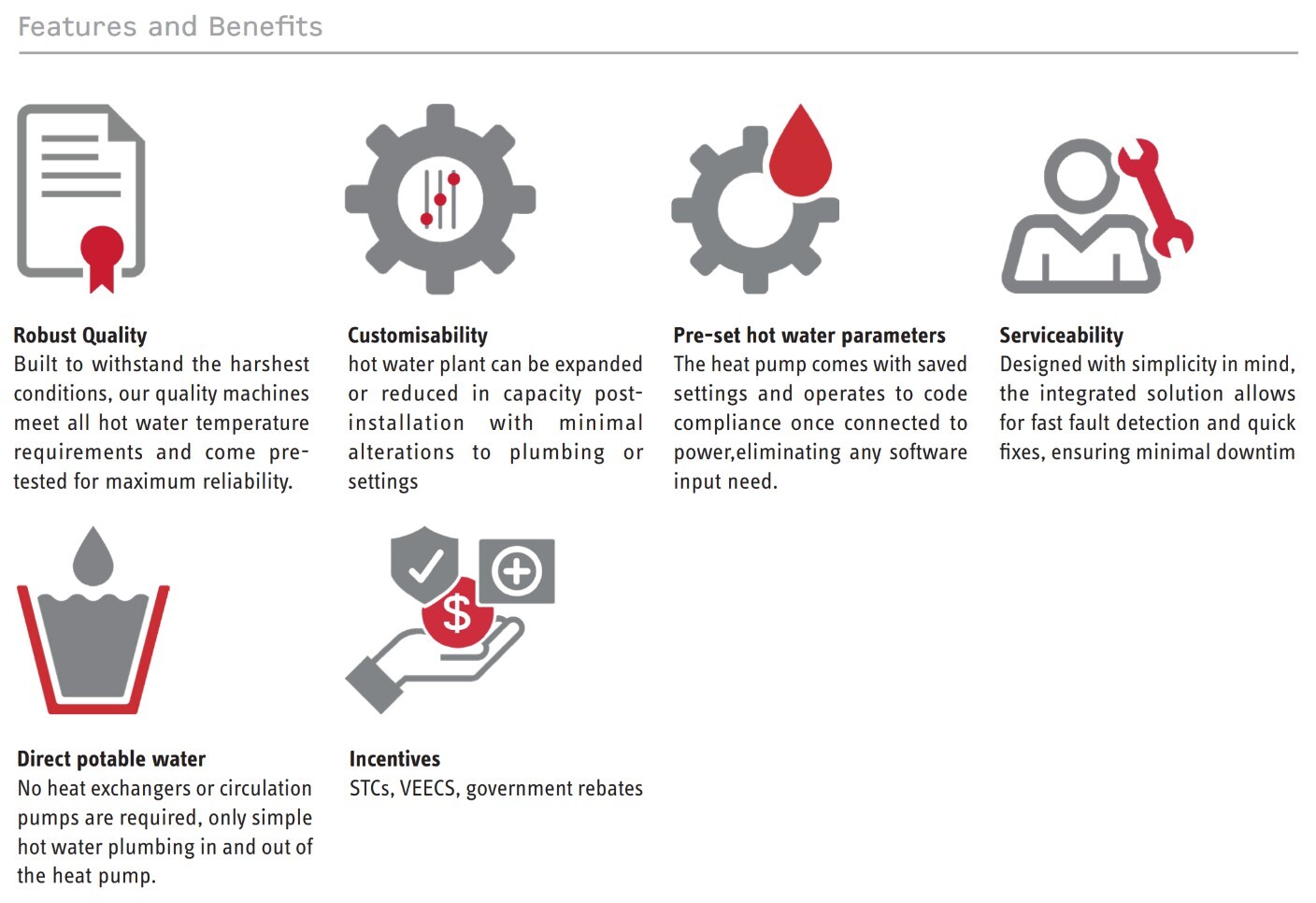

- Simple installation with high redundancy offering piece of mind
- R290 refrigerant
- Highly customisable to suit the hot water demand and plant area
- Low operating costs through high efficiency all year round
- Smart Grid ready for connection to solar PV and energy management systems
- Backed by Stiebel Eltron warranty and after-sales support
Product Overview
The Commercial Integrated (CI) heat pump packages provide an efficient and dependable solution for small to medium hot water demands in multi-residential and commercial buildings. These systems feature the durable SHP-O 300 heat pumps, which are engineered for Australian conditions and deliver high-performance hot water heating with minimal environmental impact. By directly heating potable water, the system eliminates the need for plumbing components like heat exchangers or circulation pumps, ensuring a straightforward installation process.
With pre-configured hot water settings, the system is ready to operate immediately upon connection, meeting compliance requirements effortlessly. Its modular design allows for seamless scalability, making it easy to adjust capacity as needs evolve. Maintenance is simplified, with the integrated design enabling swift servicing and reducing potential downtime.
Product Details
Technical Data
|

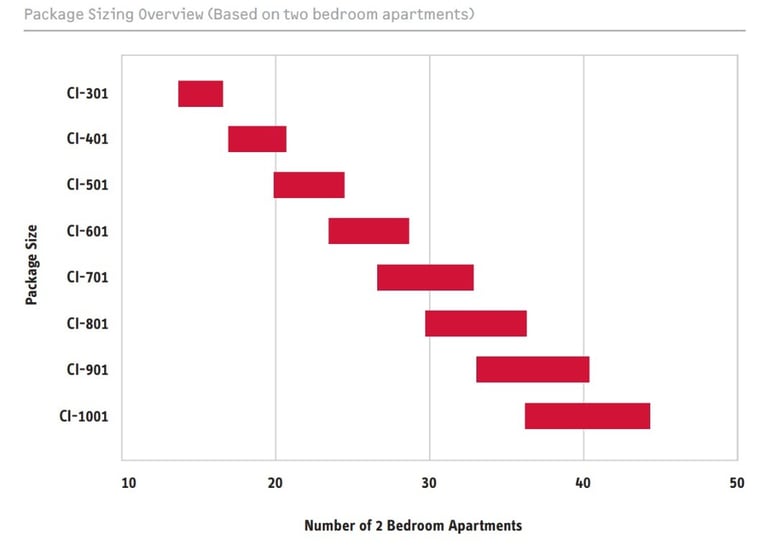

Package Name
|
CI-301 |
CI-401 |
CI-501 |
CI-601 |
CI-701
|
CI-801 |
CI-901
|
CI-1001 |
|
HP Type |
SHP-O 301 |
SHP-O 301 |
SHP-O 301 |
SHP-O 301 |
SHP-O 301 |
SHP-O 301 |
SHP-O 301 |
SHP-O 301 |
|
QTY |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Heating Cylinder Volume (L) |
900 |
1200 |
1500 |
1800 |
2100 |
2400 |
2700 |
3000 |
|
Booster Volume (L) |
315 |
315 |
315 |
315
|
315
|
315
|
315
|
315
|
|
Min. Spatial Requirement (m2) |
6.04 |
7.93 |
9.81 |
11.70 |
13.58 |
15.47 |
17.35 |
19.24 |
|
Dry Weight (kg) |
426 |
543
|
660 |
777
|
894 |
1011 |
1128
|
1245 |
|
Wet Weight (kg) |
1666 |
2088
|
2510 |
2932 |
3354
|
3776 |
4198
|
4620
|
|
Connected load (A) |
26.75 |
29 |
31.25 |
33.5
|
35.75
|
38
|
40.25
|
42.5 |
|
Peak Draw (kW) |
6.15 |
6.6 |
7.05 |
7.5
|
7.95 |
8.4
|
8.85 |
9.3 |
