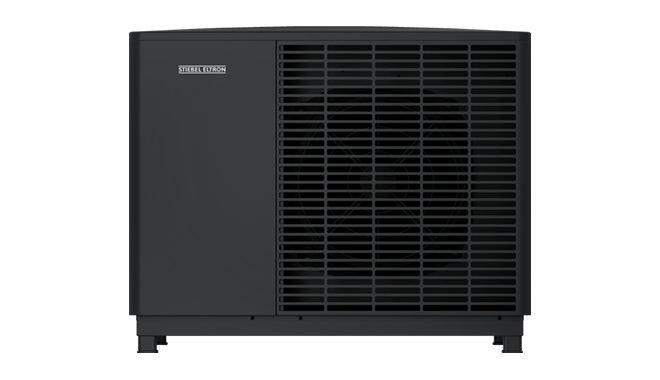

WPL-A Trend
- Air source heat pump for heating, hot water and cooling
- Inverter technology provides adjusted heating output
- High flow temperatures of up to 75 °C enable high DHW temperatures and mixed water volumes
- Low operating costs through efficient R290 technology all year round
- Smart Grid ready for connection to solar PV and energy management systems
Product Overview
The WPL-A Trend air source heat pump series represents the next generation of heat pumps, delivering year-round comfort with efficient heating, domestic hot water, and summer cooling. Designed for new build and renovation projects, it maintains high flow temperatures even in extreme cold. Using the eco-friendly R290 refrigerant, the series combines high efficiency with minimal environmental impact. With flexible installation, quiet operation, and advanced safety features, the WPL-A 10.2, 13.2, and future 17.2 models offer a modern, sustainable solution for homes seeking comfort, reliability, and environmental responsibility.
Product Details
STIEBEL ELTRON's next generation WPL-A Trend air source heat pump series delivers year-round comfort with efficient heating, domestic hot water, and summer cooling. Its advanced inverter technology ensures high flow temperatures even at extremely low outdoor temperatures, while operating sound is minimized thanks to an encapsulated refrigerant circuit and acoustically isolated compressor. Using the eco-friendly R290 refrigerant, the WPL-A Trend series combines high efficiency with minimal environmental impact, making it ideal for both new builds and renovation projects.
The WPL-A range will include the WPL-A 10.2 (10.97 kW) and WPL-A 13.2 (13.92 kW) models, which will be available soon, and the larger WPL-A 17.2, coming later. STIEBEL hydronic heat pumps can be used in combination with optional accessories, such as the ISG connect unit, which allows control of the heat pump remotely from your home network or mobile device.
STIEBEL ELTRON is a pioneer in home energy management: all hydronic heat pump models can be connected to a solar PV system. Furthermore, they can be integrated into a SmartGrid, increasing self-consumption and reducing energy bills.
Market-leading Quality by STIEBEL ELTRON
- Advanced technology ensuring maximum efficiency
- Backed by leading STIEBEL ELTRON warranty and after-sales support
- Compatible with optional accessories to get the most out of your product
Hydronic Heating Comfort
- High flow temperatures for underfloor and radiator heating
- Silent operation thanks to encapsulated refrigerant circuit and isolated compressor
- Suitable for new builds as well as retrofits
- SmartGrid ready for connection to Solar PV and home energy management systems
Ready for Installation
- Compact mono block design for outdoor installation
- Options for wall-mounted or freestanding installation
- Integral anti-vibration mounts for direct connection to the heating system
- Easy access to the electrical connection panel with secure spring terminals
- Sold in perfectly matched sets with compact internal modules for straightforward and space-saving installation
Technical Data
| Model Number | WPL-A 10.2 | WPL-A 13.2 |
| Energy efficiency class | A+++ | A+++ |
| Rated voltage | 230 V (single phase) | 400 V (3 phase) |
| Output at A7/W35 (EN14511) | 10.97 kW | 13.92 kW |
| Coefficient of performance at A7/W35 (EN14511) | 5.40 | 5.36 |
| Sound power level (EN 12102) | 48 dB(A) | 49 dB(A) |
| Max. application limit on the heating side | 75°C | 75°C |
| Refrigerant | R290 | R290 A |
| Height | 960 mm | 1144 mm |
| Width | 1170 mm | 1170 mm |
| Depth | 727 mm | 727 mm |
| Weight | 150 kg | 150 kg |
Downloads
FAQ
Air source heat pumps use a refrigeration circuit to harvest energy from the air. This energy is then used to heat the water which is pumped through a hydronic heating circuit, such as in-slab piping or radiators, to warm your home.
Hydronic heat pumps from STIEBEL ELTRON are the quietest on the market thanks to an encapsulated refrigerant circuit and acoustically isolated compressor. Advanced sound engineering guarantees that heat pumps from STIEBEL ELTRON can be used in neighbourhoods with a dense population. Many models even feature an additional silent mode.
Yes, hydronic heat pumps from STIEBEL ELTRON are engineered to operate energy efficiently even when outside temperatures fall below zero. Advanced technology ensures efficiency even at cold temperatures down to -20°C. For instance, the natural defrost function of the WPL 25 AC(S) comes into play in temperatures around 0°C to ensure a smooth and efficient operation when it becomes frosty in Australian winter.
Yes, STIEBEL ELTON offers a wide range of hydronic heat pumps which serve as heat source for either under floor heating or radiator heating, or both. This depends on the models' flow temperatures. Please consult with a STIEBEL expert to identify the right system for your needs.
STIEBEL ELTRON is working closely with hydronic heating specialists throughout Australia. Feel free to get in touch and ask for a recommended installer.
STIEBEL ELTRON offers both single and three phase models. The letter S in the model description stands for single phase, such as the WPL 25 ACS. Please also check the technical details on the product page of your model or contact STIEBEL ELTRON for further advice.
All STIEBEL ELTRON heat pumps in Australia are offered with an optional ISG web, which allows you to control and monitor your heating system via a home network or mobile device.
