Underfloor Heating Mats: FTM and FTB

  • Available only at ReeceTM
  • Fast and comfortable under tile heating
  • Electronic controller with WiFi-connectivity
  • Helps prevent mould by drying out bathroom floors and shower bases
  • Set and forget programmable controller with day programs, party and holiday modes
  • Mesh can be cut to fit room size and around fixtures
  • Suitable for renovations or new buildings
Pack Sizing Tool Ask Quick Question

Product Overview

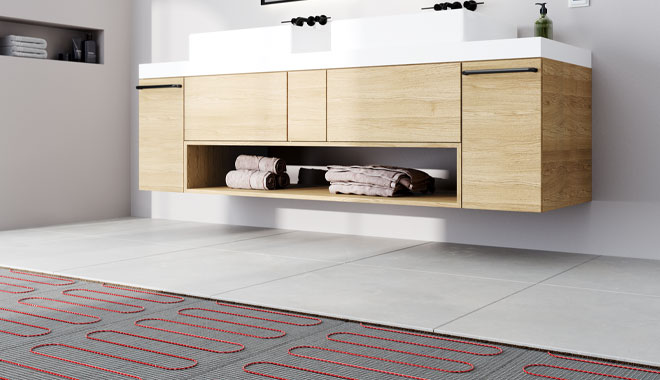

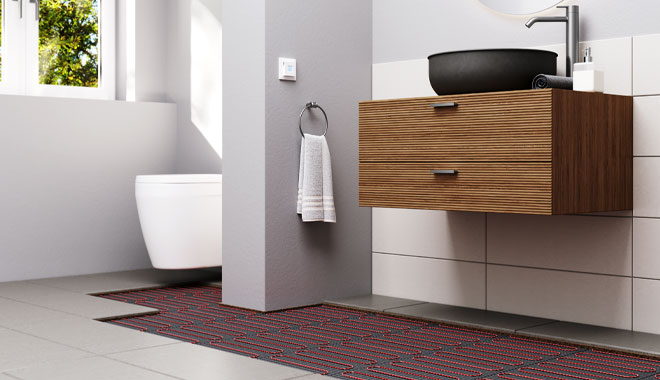

FTM underfloor heating and FTB in-shower underfloor heating

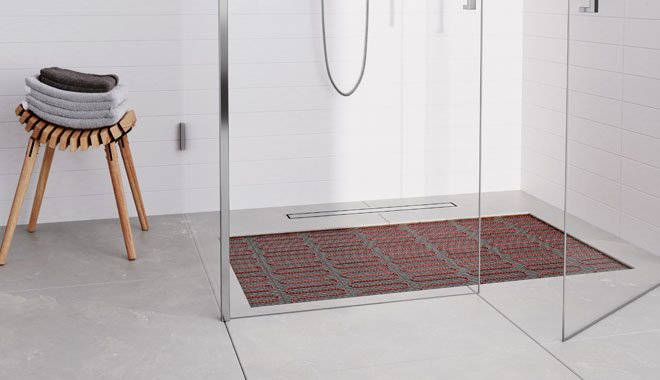

Looking for a comfortable and luxurious underfloor heating experience? Look no further than STIEBEL ELTRON underfloor heating mats. These mats deliver warmth quickly and efficiently, providing you with cosy comfort underfoot. In addition to providing warmth in the bathroom, the in-shower underfloor heating mat can help prevent mould by heating the shower base and drying the area quickly.

STIEBEL ELTRON's RTF-Connect system makes it easier than ever to use and control your underfloor heating. With a hassle-free setup, you can have full control at the thermostat or via the app. The app provides complete control over heating zones, individual thermostats, heating schedules, and heating modes.

Exclusively available at:
View The Range

Product Details

Underfloor heating mats are available in a range of sizes to fit all bathrooms. In-shower heating mats come in two sizes to ensure the right fit for your shower. Both mat meshes can be cut to allow for flexible installation around fixtures, drains, and differently shaped bathrooms. However, the heating element must not be cut. Therefore, please ensure that you choose the correct size of mat.

The RTF-Connect electronic controller is designed for floor heating products with WiFi connectivity. It can be used for floor temperature control or room temperature control with a floor limit sensor. The 2-inch touch thermostat comes with WiFi control, a built-in sensor, and a 3-metre floor sensor.

Key features:

  • No gateway required
  • APP-name SWATT in APP-store
  • Trouble-free setup and use
  • Redundant control - full control at the thermostat
  • Full APP-control of heating zones, individual thermostats, heating schedules, heating modes

Technical Data

Model number FTM 1 m2 Pack FTM 2 m2 Pack
Length/Width 2,000/500 4,000/500
Area 1 m2 2 m2
Connected load 150 W 300 W
Connection 1/N/PE ~ 230 V
Installation requirements As per AS/NZS3000
Controller RTF Connect (included)
Model number FTM 3 m2Pack FTM 4 m2 Pack
Length/Width 6,000/500 8,000/500
Area 3 m2 4 m2
Connected load 450 W 600 W
Connection 1/N/PE ~ 230 V
Installation requirements As per AS/NZS3000
Controller RTF Connect (included)
Model number FTM 5 m2 Pack FTM 6 m2 Pack
Length/Width 10,000/500 12,000/500
Area 5 m2 6 m2
Connected load 750 W 900 W
Connection 1/N/PE ~ 230 V
Installation requirements As per AS/NZS3000
Controller RTF Connect (included)
Model number FTM 7 m2 Pack FTM 8 m2 Pack
Length/Width 14,000/500 2 x 8,000/500
Area 7 m2 8 m2
Connected load 1050 W 1200 W
Connection 1/N/PE ~ 230 V
Installation requirements As per AS/NZS3000
Controller RTF Connect (included)
Model number FTM 9 m2 Pack FTM 10 m2 Pack
Length/Width 1 x 10,000/500 and
1 x 8,000/500
2 x 10,000/500
Area 9 m2 10 m2
Connected load 1350 W 1500 W
Connection 1/N/PE ~ 230 V
Installation requirements As per AS/NZS3000
Controller RTF-TC (included)
Model number FTB 160 (0.8 m2)
Length/Width 4,000/200
Area 0.8 m2
Connected load 160 W
Connection N/PE ~ 230 V 50 Hz
Installation requirements As per AS/NZS3000
Controller Not included, FTB and FTM to be operated with same controller.

Downloads

File Category Type Download
RTF-Connect Controller Data SheetData SheetPDF
2.24 MB
FTB Operation & Installation Operation and Installation GuidePDF
6.19 MB
FTM Operation & InstallationOperation and Installation GuidePDF
14.05 MB
FTM and FTB WarrantyWarrantyPDF
108.63 kB

FAQ

1What colour is the controller available in?

The RTF-Connect controller is only available in white.

How long does it take for the floor to heat up?

Approximately 20-30 minutes; however, this will be dependent on how the mat is installed and the type of tiles.

Can you program the under-tile heating mat to come on at different times?

Yes, the RTF-Connect controller can be programmed to alternate between a range of temperatures via a 7 day/24 hour program.

Can the FTM be installed inside walls?

No, it is designed for under tiles only.

Is STIEBEL's under-tile heating classed as ambient heating?

Yes, it is designed to make the floor comfortable to walk on. It is not designed as the main source of heating for the bathroom.

When you have an in-shower mat and under tile heating mat, do they operate with the same controller?

Yes, the controller operates both mats to a maximum of 2.3 kW in total.

Can the FTM be installed under wood or vinyl?

No, the FTM mat is recommended for installation under tiles or polished concrete only.

Can only an in-shower mat (FTB) be installed?

Yes, but it would be unlikely to be requested. Therefore, the RTF Connect controller (which usually comes with the FTM installation kit) has to be ordered separately.
