CNS Trend
- Smart control unit with backlit LCD
- Slimline, modern design
- Greater eco energy savings due to 7-day timer and open window detection
- Quiet, even temperature distribution
- Self-learning function: Learns when you use the heater, and automatically turns on to pre-heat
- Frost and overheating protection features
Product Overview
Enjoy greater savings thanks to a LCD smart control unit.

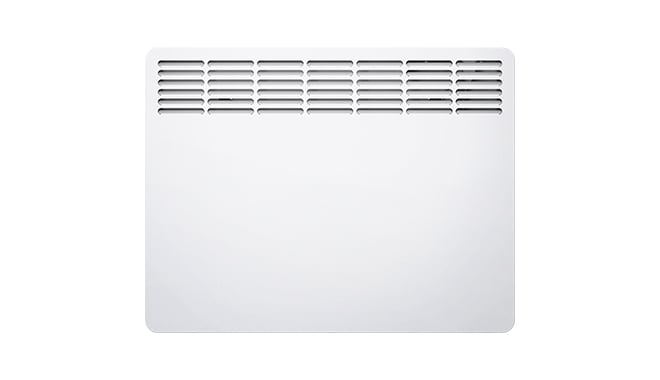

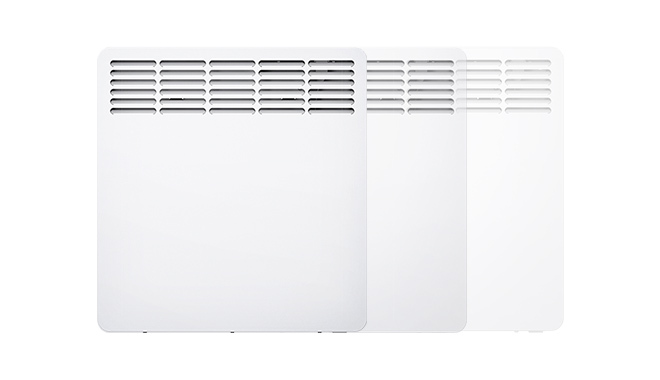

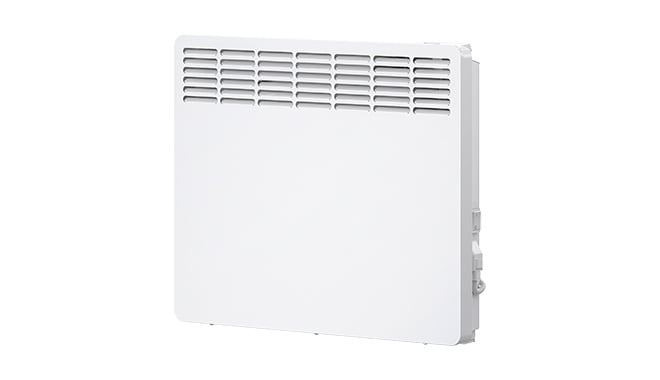

The new CNS Trend electric panel heater looks the part in any room thanks to its slimline, modern design. Featuring a smart control unit, the CNS Trend range of electric space heaters have smart eco features including a 7-day timer, open window detection and safe frost/overheat protection. Available in three sizes (1kW, 1.5kW and 2kW); all heaters in the range are compact at only 10cm deep but generate great levels of heating comfort. The CNS Trend heater also features a self-learning energy efficient function, which adapts automatically to preheat the heating element for use.
Product Details

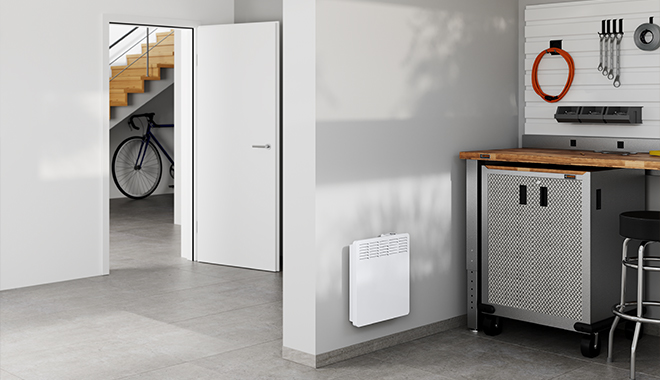

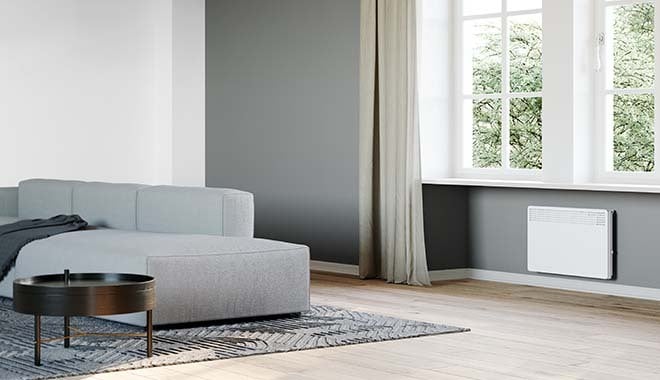

The CNS Trend is a compact, wall mounted convection electric panel heater. Ideal as an efficient space heater for bedrooms, bathrooms and general living spaces. The timeless and slimline design blends into any surroundings.

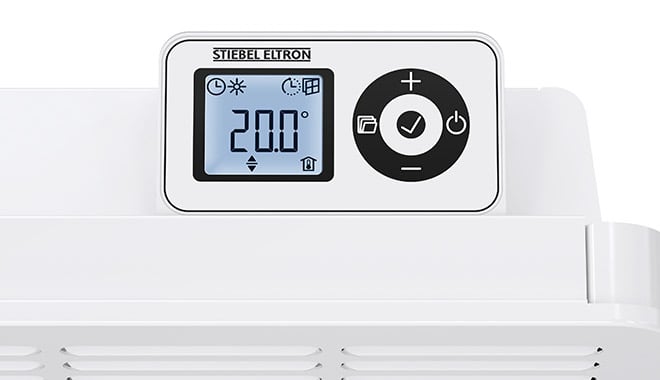

The CNS Trend is an electronically controlled heater with an easy to read LCD smart control unit display. The smart control unit allows simple programming for even, silent and accurate heating of the indoor air. The thermostat heating temperature can be adjusted from +5 to +30 °C in 0.5 °C increments. Programmable 7-day timer with 2 preset and 1 individually programmable time programs. With adaptive control as a learning function for achieving the comfort temperature in timer mode at precisely the right time. Programmable comfort and setback temperatures. Open window detection function to avoid wasted energy. Frost protection at 7 °C. Omnipolar ON/OFF switch. High-grade stainless steel tubular heater with aluminium coated steel fins. Robust metal casing. Very user-friendly due to top mounted user interface and large, easily legible display. Adjustable childproofing to prevent unintentional or unauthorised modifications to the programming unit.
CNS Trend panel heaters are maintenance-free. Installation is straightforward, stable wall mounting needs one person only: The wall mounting bracket is fitted to the wall separately from the appliance and can be readjusted later. All that remains is to hook the appliance into place. The appliance has a power cable with right angle plug.
Technical Data
| Model number | CNS 100 Trend | CNS 150 Trend | CNS 200 Trend |
| Output | 1.0kW | 1.5kW | 2.0kW |
| Current | 4.2A | 6.3A | 8.3A |
| Connection | 1/N/PE ~ 240V | ||
| Temperature adjustment | 5 – 30 °C | ||
| IP rating | IP24 | ||
| Width | 426mm | 582mm | 738mm |
| Height | 450mm | 450mm | 450mm |
| Depth | 100mm | 100mm | 100mm |
| Weight | 4.6kg | 6.0kg | 7.7kg |
| Installation | Wall mounted | ||
| Colour | Alpine white | ||
Downloads
| File | Category | Type | Download |
|---|---|---|---|
Looking for BIM / Revit files? Click here! | |||
| CNS Trend Data Sheet | Data Sheet | PDF 425.05 kB | |
| CNS Trend Operation & Installation Guide and Warranty | Operation, Installation & Warranty | PDF 2.97 MB | |
FAQ
There are 3 available sizes: 1kW, 1.5kW and up to 2kW, which can suit rooms from 10m2 up to 20m2. As a general guide for sizing a heater to a room: 1kW output heats up to 10m2.
The CNS Trend features a digital LCD smart control unit. The smart control unit allows the heater to perform extra functions, such as a 7-day timer, open window detection, self-learning programming and frost/overheating protection.
No, the CNS is only designed for wall mounted applications.
No, the CNS Trend heats the room via natural circulation. The CNS Trend is a convection panel heater. The benefit of this is that the usage of this space heater is silent, perfect for bedrooms.
No, the CNS Trend is not a Radiant Heater but instead a Convection Heater. Unlike Radiant Heaters, Convection Heaters heat the air between the electric heater and the subject.
Yes the CNS Trend has an IP rating of IP24 and can be used as a bathroom heater as it is protected from splash water in any direction.
No, it is an indoor heater.
Yes, convection electric heaters are also called electric space heaters.
Yes, the modern CNS Trend has a digital thermostant, ensure it is a safe room heater with extra eco functions for energy efficiency.
Yes, the wall mounted electric space heater can be used as an indoor garage heater.
